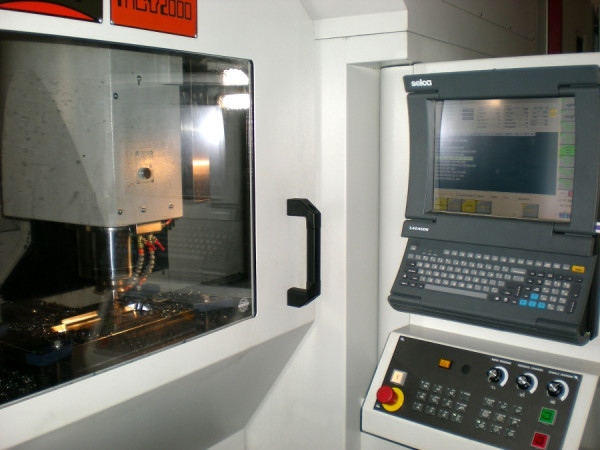

First 2000 MCV

LARGE PRELOADED BALL SCREWS
Class C3 precision ball screws with double nut are used on all three axes.
Direct drive from servo motor to ball screw. Ball Screw Diameter: X: 63mm / Y: 40mm / Z: 50mm.
Fast traversing speed: X: 30mm / Y: 30mm / Z: 16mm.
Table dimensions: 2200x1100 mm.
Max. table load: 3000 kg.
One-piece base with two chip auger slots on both sides minimizes cleaning time.

CHARGER
It is possible to load and unload tools during machining.
Tool change or tool selection will not be performed while the door is open for safety reasons.

SADDLE AND Z AXIS
The saddle enlarged to 14000 mm and with 6 knobs on the Z axis reinforce the cutting rigidity.

TRIPLE GUIDE PER IL MOVIMENTO DELL'ASSE Y
2 linear roller guides are on the face of the deck and the third is placed on top to offer excellent headstock sealing.

STANDARD CHUCK
Easy for after-sales service.
High precision.
Cooling jet around the spindle.
